Ray Tracing, Irradiance, and Polarization Analysis

import matplotlib.pyplot as plt
import numpy as np
import optiland.backend as be
from optiland.coatings import BaseCoatingPolarized
from optiland.jones import JonesPolarizerH, JonesQuarterWaveRetarder
from optiland.rays import PolarizationState, PolarizedRays

from main import Collimator, LED, beam_radius, irradiance_map, stokes_map


# Number of rays to trace
num_rays = 100_000


class LinearPolarizer(BaseCoatingPolarized):
    def __init__(self) -> None:
        super().__init__()
        self.jones = JonesPolarizerH()


class QuarterWavePlate(BaseCoatingPolarized):
    def __init__(self, theta: float = 0.0) -> None:
        super().__init__()
        self.jones = JonesQuarterWaveRetarder(theta=theta)


led = LED()

lens = Collimator()
lens.set_polarization(PolarizationState(is_polarized=False))


# The polarizer is at 5 cm from the collimator to account for tube length.
# The quarter-wave plate is 2 cm after the polarizer.
lens.set_thickness(50.0, surface_number=2)
lens.add_surface(index=3, thickness=20.0, material="air")
lens.add_surface(index=4, thickness=0.0, material="air")

lens.surface_group.surfaces[3].interaction_model.coating = LinearPolarizer()
lens.surface_group.surfaces[4].interaction_model.coating = QuarterWavePlate(theta=np.pi / 4)

led_rays = led.generate_rays(num_rays=num_rays)

# Shift rays to start at the z-position of the source, not the collimator's front vertex.
z_offset = lens.surface_group.positions[0, 0]
rays = PolarizedRays(
    led_rays.x,
    led_rays.y,
    led_rays.z + z_offset,
    led_rays.L,
    led_rays.M,
    led_rays.N,
    led_rays.i,
    led_rays.w,
)

lens.surface_group.trace(rays)
rays.update_intensity(lens.polarization_state)

x_hist = be.to_numpy(lens.surface_group.x)   # (num_surfaces, num_rays)
y_hist = be.to_numpy(lens.surface_group.y)
z_hist = be.to_numpy(lens.surface_group.z)
i_hist = be.to_numpy(lens.surface_group.intensity)

# Subsample rays
rng = np.random.default_rng(0)
idx = rng.choice(x_hist.shape[1], size=256, replace=False)

# Draw just the system geometry (one dummy ray bundle, we'll overlay the real rays).

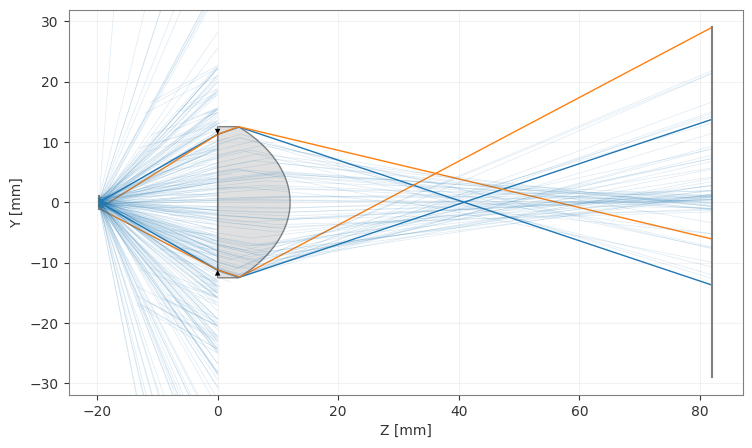

fig, ax = lens.draw(fields="all", num_rays=2, distribution="line_y", figsize=(12, 5))

for k in idx:
    yk, zk, ik = y_hist[:, k].copy(), z_hist[:, k].copy(), i_hist[:, k]
    yk[ik == 0] = np.nan   # break the line where the ray was blocked/vignetted
    zk[ik == 0] = np.nan
    ax.plot(zk, yk, color="C0", alpha=0.15, linewidth=0.5)

# QWP sits at z ~= 82.0163 mm (coincident with the image plane). Read the z
# straight off `rays` (not `lens.surface_group`, which lens.draw() above
# re-traces and overwrites with its own field-point ray bundle) and use
# nanmedian since vignetted rays carry NaN z.
z_qwp = float(np.nanmedian(be.to_numpy(rays.z)))
z_planes = [z_qwp, z_qwp + 50, z_qwp + 200, z_qwp + 230]

r_max = beam_radius(rays, z_planes[-1])
extent = (-r_max, r_max, -r_max, r_max)

# Precompute all irradiance + Stokes maps first so every subplot in a row can
# share one vmax and one colorbar for the whole row.
irr_maps = [irradiance_map(rays, z, extent=extent) for z in z_planes]
irr_vmax = max(irr.max() for irr, _, _ in irr_maps)
stokes_maps = [stokes_map(rays, z, extent=extent) for z in z_planes]

# constrained_layout (instead of a trailing fig.tight_layout()) accounts for
# the shared colorbars' reserved space, so they don't overlap the last plot.

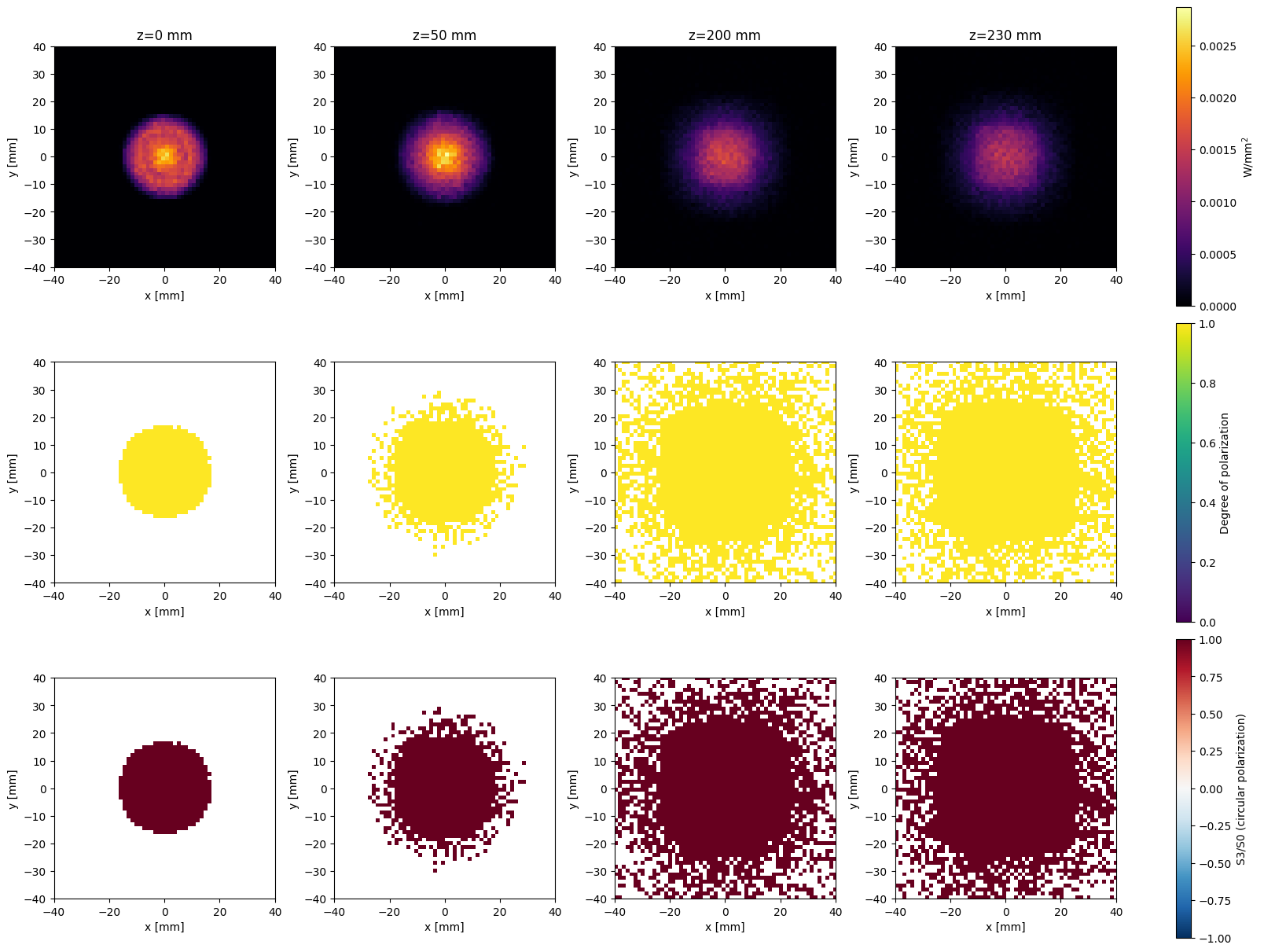

fig, axes = plt.subplots(3, len(z_planes), figsize=(4 * len(z_planes), 12), constrained_layout=True)
for col, z in enumerate(z_planes):
    irr, xe, ye = irr_maps[col]
    im0 = axes[0, col].imshow(
        irr.T, origin="lower", extent=(xe[0], xe[-1], ye[0], ye[-1]),
        cmap="inferno", vmin=0, vmax=irr_vmax,
    )
    axes[0, col].set_title(f"z={z - z_qwp:.0f} mm")
    axes[0, col].set_xlabel("x [mm]")
    axes[0, col].set_ylabel("y [mm]")
    axes[0, col].set_xlim(-40, 40)
    axes[0, col].set_ylim(-40, 40)

    S0m, S1m, S2m, S3m, xe, ye = stokes_maps[col]
    dop = np.sqrt(S1m**2 + S2m**2 + S3m**2) / np.where(S0m > 0, S0m, np.nan)
    im1 = axes[1, col].imshow(
        dop.T, origin="lower", extent=(xe[0], xe[-1], ye[0], ye[-1]), cmap="viridis", vmin=0, vmax=1
    )
    axes[1, col].set_xlabel("x [mm]")
    axes[1, col].set_ylabel("y [mm]")
    axes[1, col].set_xlim(-40, 40)
    axes[1, col].set_ylim(-40, 40)

    # Circular polarization state: S3/S0, +1 = fully right-circular,
    # -1 = fully left-circular, 0 = no circular component.
    circ = S3m / np.where(S0m > 0, S0m, np.nan)
    im2 = axes[2, col].imshow(
        circ.T, origin="lower", extent=(xe[0], xe[-1], ye[0], ye[-1]), cmap="RdBu_r", vmin=-1, vmax=1
    )
    axes[2, col].set_xlabel("x [mm]")
    axes[2, col].set_ylabel("y [mm]")
    axes[2, col].set_xlim(-40, 40)
    axes[2, col].set_ylim(-40, 40)

# One shared colorbar per row, to the right of the right-most plot, instead
# of one per subplot.
fig.colorbar(im0, ax=axes[0, :], label="W/mm$^2$")
fig.colorbar(im1, ax=axes[1, :], label="Degree of polarization")
fig.colorbar(im2, ax=axes[2, :], label="S3/S0 (circular polarization)")

plt.show()

print("Average degree of polarization:", np.mean(dop[~np.isnan(dop)]))
print("Average circular polarization:", np.mean(circ[~np.isnan(circ)]))

print(f"LED distance from lens: {lens.surface_group.positions[0][0]}")
print(f"Paraxial front focal distance: {lens.paraxial.f1()}")

# The paraxial front focal distance is an intrinsic property of the
# asphere/B270 surfaces (surface indices 1, 2) alone, independent of where
# the object/LED actually sits, so we can read it off a fresh default
# Collimator before moving the LED.
f1 = Collimator().paraxial.f1()
print(f"Paraxial front focal distance: {f1:.4f} mm")

lens_ffd = Collimator()
lens_ffd.set_polarization(PolarizationState(is_polarized=False))

# Move the LED to sit exactly at the front focal point (f1 is negative,
# i.e. in front of the first surface; set_thickness takes a positive
# distance for the object surface).
lens_ffd.set_thickness(abs(f1), surface_number=0)

# The polarizer is at 5 cm from the collimator to account for tube length.
# The quarter-wave plate is 2 cm after the polarizer.
lens_ffd.set_thickness(50.0, surface_number=2)
lens_ffd.add_surface(index=3, thickness=20.0, material="air")
lens_ffd.add_surface(index=4, thickness=0.0, material="air")

lens_ffd.surface_group.surfaces[3].interaction_model.coating = LinearPolarizer()
lens_ffd.surface_group.surfaces[4].interaction_model.coating = QuarterWavePlate(theta=np.pi / 4)

led_rays_ffd = led.generate_rays(num_rays=num_rays)

# Shift rays to start at the z-position of the source, not the collimator's front vertex.
z_offset_ffd = lens_ffd.surface_group.positions[0, 0]
rays_ffd = PolarizedRays(
    led_rays_ffd.x,
    led_rays_ffd.y,
    led_rays_ffd.z + z_offset_ffd,
    led_rays_ffd.L,
    led_rays_ffd.M,
    led_rays_ffd.N,
    led_rays_ffd.i,
    led_rays_ffd.w,
)

lens_ffd.surface_group.trace(rays_ffd)
rays_ffd.update_intensity(lens_ffd.polarization_state)

x_hist_ffd = be.to_numpy(lens_ffd.surface_group.x)   # (num_surfaces, num_rays)
y_hist_ffd = be.to_numpy(lens_ffd.surface_group.y)
z_hist_ffd = be.to_numpy(lens_ffd.surface_group.z)
i_hist_ffd = be.to_numpy(lens_ffd.surface_group.intensity)

# Subsample rays
rng = np.random.default_rng(0)
idx = rng.choice(x_hist_ffd.shape[1], size=256, replace=False)

# Draw just the system geometry (one dummy ray bundle, we'll overlay the real rays).

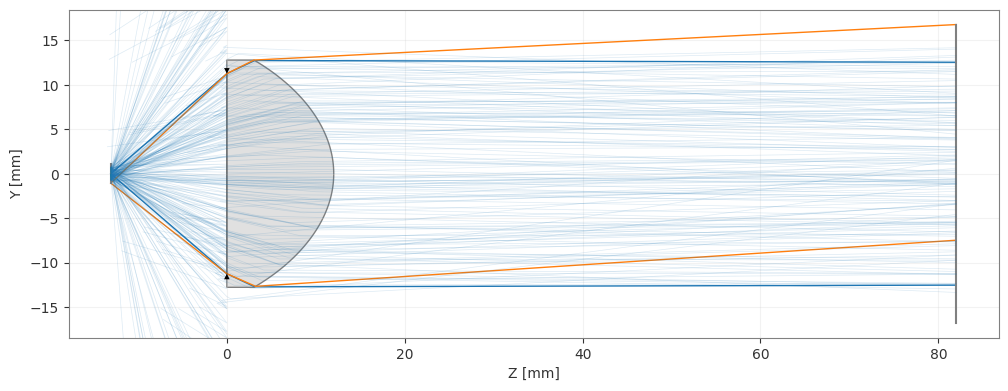

fig, ax = lens_ffd.draw(fields="all", num_rays=2, distribution="line_y", figsize=(12, 5))

for k in idx:
    yk, zk, ik = y_hist_ffd[:, k].copy(), z_hist_ffd[:, k].copy(), i_hist_ffd[:, k]
    yk[ik == 0] = np.nan   # break the line where the ray was blocked/vignetted
    zk[ik == 0] = np.nan
    ax.plot(zk, yk, color="C0", alpha=0.15, linewidth=0.5)
